Heat Sink Vs Cold Plate: Key Differences in Thermal Management Solutions

Introduction

In today's fast-paced electronics industry, thermal management is vital to device design and functionality. As electronic devices grow in power and decrease in size, effective heat dissipation methods are crucial for maintaining performance and extending lifespan. Among the leading thermal management solutions are heat sinks and cold plates. This article explores the key differences between these two technologies, guiding you to make an informed choice for your application.

What is a Heat Sink?

Definition and Basic Structure

A heat sink is a passive device that transfers heat from an electronic or mechanical component to a fluid medium, typically air or liquid coolant, ensuring the component's temperature remains within safe limits.

How Heat Sinks Work (Convection Principle)

Heat sinks operate based on the principle of convection. They absorb heat from the device and dissipate it into the surrounding environment. The fins and extended surfaces of a heat sink increase the surface area for heat dissipation, enhancing the efficiency of the cooling process.

Common Materials Used

Heat sinks are typically made from aluminum or copper due to their excellent thermal conductivity. Aluminum is lightweight and cost-effective, making it a popular choice. Copper, though heavier and more expensive, offers superior thermal performance.



Typical Applications

Heat sinks are widely used in various applications, including computers, LED lighting, power electronics, and automotive components. They are particularly effective in environments where airflow can be managed and controlled.

What is a Cold Plate?

Definition and Basic Structure

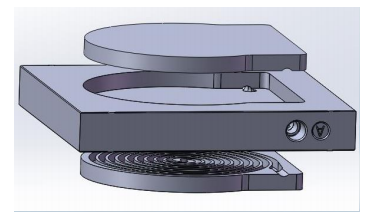

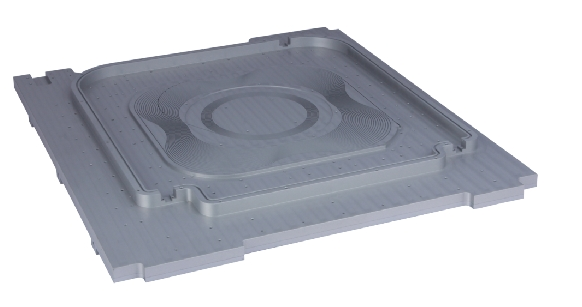

A cold plate is an active cooling device that uses liquid cooling to manage the heat generated by electronic components. It consists of a plate with internal channels through which a coolant flows, absorbing and transferring heat away from the device.

How Cold Plates Work (Conduction Principle)

Cold plates operate based on the principle of conduction. The coolant absorbs heat directly from the device, transferring it to a heat exchanger or radiator and dissipating it into the environment. This method provides efficient and targeted cooling.



Common Materials and Coolants Used

Cold plates are typically made from copper or aluminum, similar to heat sinks. The coolants can vary, but common choices include water, glycol-water mixtures, and specialized dielectric fluids for sensitive applications.

Typical Applications

Cold plates are used in high-power applications where air cooling is insufficient. Common uses include data centers, medical equipment, military electronics, and high-performance computing systems.

Key Differences Between Heat Sinks and Cold Plates

Heat Transfer Mechanism (Convection vs Conduction)

· Heat Sinks: Rely on convection to dissipate heat into the surrounding air.

· Cold Plates: Use conduction to transfer heat to a coolant that carries it away.



Cooling Efficiency and Capacity

· Heat Sinks: Suitable for applications with moderate heat loads. Their efficiency depends on airflow and ambient conditions.

· Cold Plates: Can handle higher heat loads and provide more consistent cooling performance, especially in confined spaces.

Size and Weight Considerations

· Heat Sinks: Generally larger and heavier due to the need for extensive surface area.

· Cold Plates: More compact and lighter, making them suitable for space-constrained applications.

Cost Comparison

· Heat Sinks: Typically more cost-effective due to simpler design and materials.

· Cold Plates: These are more expensive due to the complexity of the design and the need for additional components like pumps and heat exchangers.

Maintenance Requirements

· Heat Sinks: Require minimal maintenance, mainly cleaning, to prevent dust buildup.

· Cold Plates: Require regular maintenance to ensure coolant quality and system integrity.

Flexibility and Scalability

· Heat Sinks: Limited flexibility in design changes once implemented.

· Cold Plates: Offer greater flexibility and scalability, making them suitable for custom and evolving applications.

Choosing Between Heat Sinks and Cold Plates

Factors to Consider

When deciding between heat sinks and cold plates, consider factors such as:

· Heat load: Higher heat loads may necessitate cold plates.

· Space constraints: Limited space may favor cold plates.

· Budget: Heat sinks are generally more budget-friendly.

· Maintenance capabilities: Consider the maintenance requirements and resources available.

Scenarios Where Heat Sinks Are Preferable

Heat sinks are ideal for applications with:

· Moderate heat loads

· Sufficient airflow for convection

· Budget constraints

· Minimal maintenance capabilities

Scenarios Where Cold Plates Are Advantageous

Cold plates are suitable for:

· High heat load environments

· Limited space applications

· High-performance computing or sensitive electronics

· Situations where precise temperature control is essential

Emerging Trends and Innovations

Advancements in Heat Sink and Cold Plate Technologies

Recent innovations in thermal management include:

· 3D-printed heat sinks: Offering complex geometries for enhanced performance.

· Advanced materials, Such as graphene, provide superior thermal conductivity.

· Hybrid solutions: Combining heat sinks and cold plates for optimized performance.

Integration of Both Technologies in Hybrid Solutions

Hybrid thermal management solutions leverage the strengths of both heat sinks and cold plates, providing enhanced performance and flexibility. These systems are becoming increasingly popular in high-demand applications such as data centers and advanced computing systems.

Conclusion

Choosing the right thermal management solution is crucial for the optimal performance and longevity of electronic devices. Heat sinks and cold plates each offer unique advantages, and the choice depends on specific application requirements such as heat load, space constraints, budget, and maintenance capabilities. Understanding key differences and emerging trends enables you to make an informed decision that best meets your needs.
