Passive heat sinks are essential components in thermal management systems. They are designed to dissipate heat from electronic devices without active components like fans. They rely on natural heat transfer mechanisms to maintain optimal operating temperatures and prevent overheating.
Effective thermal management is critical in electronics to ensure longevity and reliability. Overheating can lead to component failure, reduced performance, and shortened device lifespan. Passive heat sinks are pivotal in maintaining thermal equilibrium, especially in high-performance and high-density electronic environments.
Heat transfer in passive heat sinks occurs through three primary mechanisms:
1. Conduction refers to the direct flow of heat through a material. Aluminum and copper are examples of materials with high heat conductivity.
2. Convection is the transfer of heat through fluid motion, usually air. A practical design maximizes airflow around the heat sink.
3. Radiation: The emission of heat energy in the form of electromagnetic waves. This mechanism is generally less significant but can be optimized through surface treatments.
Several factors influence the efficiency of a passive heat sink:
· Material: Copper offers superior thermal conductivity compared to aluminum, but aluminum is lighter and often more cost-effective.
· Surface Area: Larger surface areas enhance heat dissipation by increasing exposure to cooler ambient air.
· Fin Design: Fin fins' number, shape, and orientation significantly affect airflow and heat transfer efficiency.

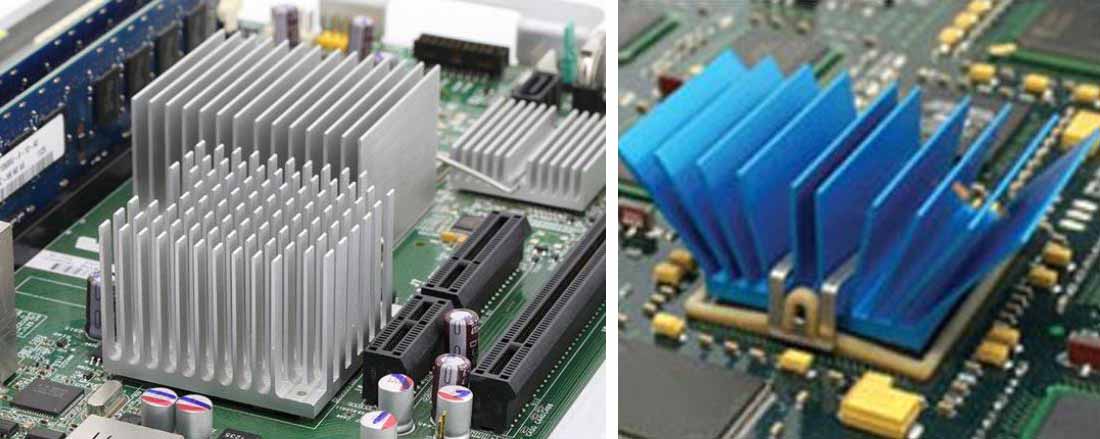

Extruded heat sinks push metal through a die to create a specific cross-sectional profile. They are popular due to their cost-effectiveness and ease of customization. These heat sinks offer good performance and are widely used in various applications.
Stamped heat sinks are produced by punching metal sheets into the desired shape. This method is economical for large-scale production but typically offers lower performance than extruded designs due to limitations in fin geometry.
Bonded or folded fin heat sinks involve bonding individual fins to a base plate. This design allows for high-density fin arrangements, enhancing surface area and airflow. They are ideal for applications requiring compact yet efficient thermal management solutions.
Pin fin heat sinks feature an array of pins that protrude from the base plate, enhancing air turbulence and heat dissipation. They are particularly effective in natural convection environments and can be oriented in multiple directions for versatile mounting options.
Understanding the application's thermal resistance and specific heat dissipation needs is crucial. Engineers must calculate the total power dissipation and select a heat sink with the appropriate thermal resistance to ensure reliable operation.
The airflow around the heat sink significantly impacts its performance. Designers must consider the natural convection currents and possibly enhance them with strategic placement and orientation of the heat sink to maximize cooling efficiency.
In many applications, space and weight are critical factors. Compact designs and lightweight materials are often required, especially in portable and aerospace electronics where every gram and millimeter counts.
Balancing cost and performance is a crucial challenge. While high-performance materials and complex designs offer better thermal management, they also offer higher prices. Manufacturing techniques such as die-casting, extrusion, and stamping must be chosen based on volume requirements and budget constraints.
Passive heat sinks are extensively used in computer components such as CPUs, GPUs, and power supplies. They help maintain optimal temperatures, ensuring peak performance and reliability in personal computers, servers, and data centers.
In automotive electronics, passive heat sinks manage heat in components like engine control units (ECUs) and infotainment systems. They ensure consistent performance under varying thermal conditions, contributing to vehicle reliability and safety.
Telecommunication equipment, including base stations and routers, relies on passive heat sinks to manage the heat generated by continuous operation. Effective thermal management ensures uninterrupted service and extends the lifespan of critical communication infrastructure.
In industrial automation systems, passive heat sinks are crucial for managing the heat in sensors, controllers, and actuators. They enable reliable performance in harsh industrial environments, reducing downtime and maintenance costs.
· Silent Operation: Passive heat sinks operate without noise, making them ideal for noise-sensitive environments.
· Reliability: With no moving parts, passive heat sinks are highly reliable and require minimal maintenance.
· Low Maintenance: Once installed, they need minimal ongoing maintenance, reducing overall system upkeep.
· Limited Heat Dissipation Capacity: Passive heat sinks have a maximum heat dissipation capacity, making them unsuitable for extremely high-power applications.
· Dependence on Ambient Conditions: Their performance can be significantly affected by ambient temperature and airflow conditions, limiting their effectiveness in specific environments.
The role of passive heat sinks in thermal management is indispensable, particularly in applications where silent operation and reliability are paramount. The demand for efficient passive cooling solutions will grow as electronic devices evolve. Future trends include developing new materials and advanced manufacturing techniques to enhance the performance and versatility of passive heat sinks.
