In electronics, managing heat effectively is critical to ensure optimal performance and longevity of devices. Heatsinks are a fundamental component in thermal management, dissipating excess heat generated by electronic components. This guide explores the different types of heatsinks available and provides insights on selecting the best one for your needs.
A heatsink is a passive heat exchanger that absorbs heat from a device and dissipates it into the surrounding air or liquid coolant. Its primary function is maintaining the device's temperature within safe operating limits.
1. Material: The thermal conductivity of the heatsink material significantly affects its performance. Common materials include aluminum and copper.
2. Surface Area: Larger surface areas improve heat dissipation. Fins and other extended surfaces are used to maximize this area.
3. Airflow: Effective airflow over the heatsink surface is crucial. Natural or forced convection (using fans) is a common method to enhance airflow.
Description and Advantages: Made of extruding aluminum, these heatsinks are cost-effective and offer good thermal performance. They are easy to manufacture and can be produced in various shapes and sizes.
Best Applications: Suitable for general electronics, CPUs, and GPUs where moderate heat dissipation is required.
Description and Advantages: These heatsinks are made by stamping metal sheets into the desired shape. They are lightweight and inexpensive.
Best Applications: Ideal for consumer electronics and small devices with lower heat dissipation needs.

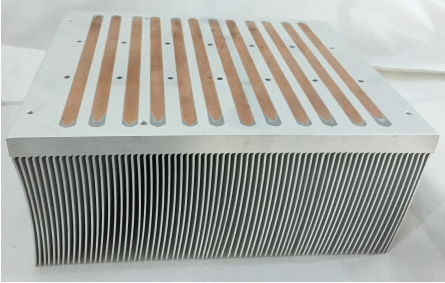

Description and Advantages: These heatsinks feature fins bonded to the base, offering a high surface area and efficient cooling. They are suitable for high-power applications.
Best Applications: Used in industrial devices and other high-power applications where efficient cooling is essential.

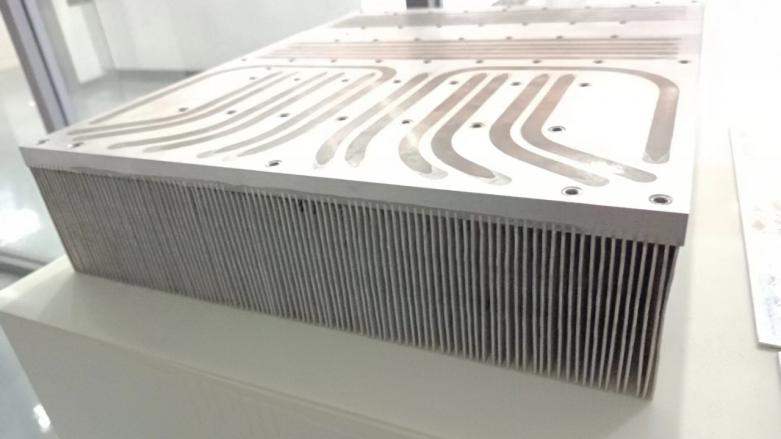

Description and Advantages: These heatsinks are made by skiving fins from a solid block of metal, typically copper or aluminum. They offer excellent thermal performance and durability.
Best Applications: Perfect for high-performance CPUs and GPUs requiring superior cooling.

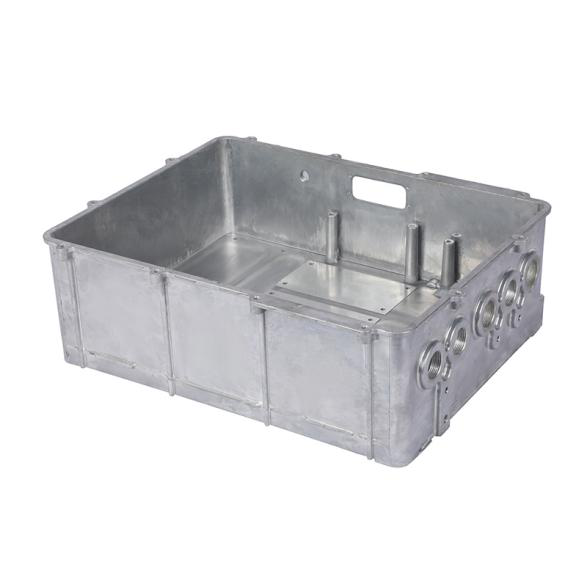

Description and Advantages: Manufactured through die-casting, these heatsinks can be made in complex shapes and are robust. However, they are heavier and more expensive.
Best Applications: Suitable for automotive, aerospace, and custom applications where complex shapes are needed.

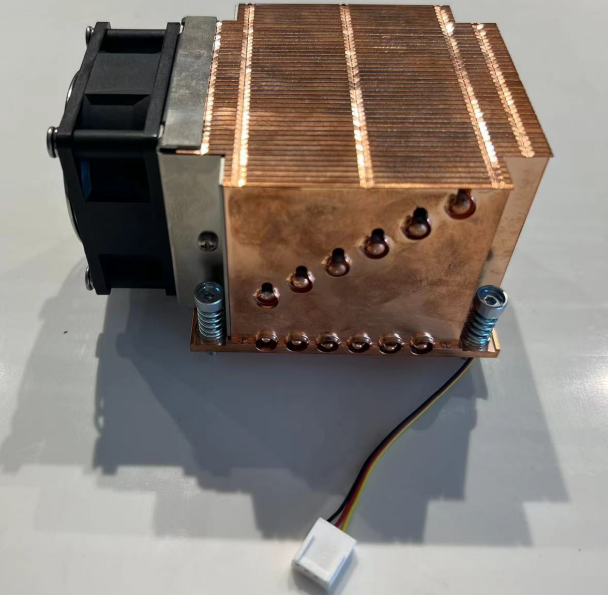

Description and Advantages: These heatsinks incorporate fans to enhance cooling performance. They provide superior cooling and adjustable performance.
Best Applications: Ideal for high-power CPUs, GPUs, and servers where maximum cooling is required.
l Thermal Requirements of the Device: Assess the heat the device generates and choose a heatsink to handle this load effectively.
l Space Constraints: Consider the available space for the heatsink. Some applications may require compact solutions.
l Cost Considerations: Budget constraints may influence the choice of material and type of heatsink.
l Environmental Factors: Environmental conditions such as dust and humidity can affect heatsink performance.
There is no one-size-fits-all answer to this question. Different applications have different cooling requirements, and the best heatsink will depend on specific needs.
· General Electronics: Extruded aluminum heatsinks provide a good balance of performance and cost.
· Consumer Electronics: Stamped heatsinks are lightweight and cost-effective for small devices.
· High-Power Applications: Bonded fin heatsinks offer efficient cooling for industrial devices.
· High-Performance Computing: Skived heatsinks provide superior thermal performance for high-end CPUs and GPUs.
· Custom Applications: Die-cast heatsinks can be made in complex shapes to fit specific requirements.
· Maximum Cooling: Active heatsinks with fans are ideal for high-power devices like servers.
Type of Heatsink | Advantages | Best Applications | Considerations |
Extruded Aluminum Heatsinks | Good thermal performance, cost-effective | General electronics, CPUs, GPUs | Limited to simpler shapes |
Stamped Heatsinks | Lightweight, cost-effective | Consumer electronics, small devices | Less effective for high-power devices |
Bonded Fin Heatsinks | High surface area, efficient cooling | High-power applications, industrial devices | More expensive, complex manufacturing |
Skived Heatsinks | Excellent thermal performance, durable | High-performance CPUs, GPUs | Higher cost, more complex to manufacture |
Die-Cast Heatsinks | Complex shapes possible, robust | Automotive, aerospace, custom applications | Heavier, more expensive |
Active Heatsinks (with fans) | Superior cooling, adjustable performance | High-power CPUs, GPUs, servers | Requires power, can be noisy |
Choosing the right heatsink is crucial for ensuring optimal device performance and longevity. Each type of heatsink offers unique advantages, and the best choice depends on specific application requirements such as thermal load, space constraints, budget, and environmental factors. By understanding these key differences, you can make an informed decision that best meets your needs.
